A
- Rugged durable construction |
| Typical Application : | |
|
Duct Heating |
Shrinking Tunnels |
|
Space Heaters |
Air Heating |
|
Drying Ovens |
Heat Curing |
|
Food Warners |
Dehumidifier |

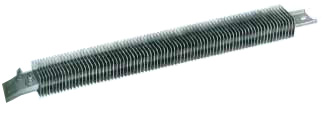

Constructions : - The Finned strip heaters basic consists of a helically wound resistance coil placed in a specialy designed ceramic insulator. The resistance coil is mechanically connected to screw terminal for positive connection. Stainless rectangular tubing is used to house the heater assembly. All remaining voids are filled with high purity magnesium oxide to increase thermal conductivity and dielectric strength. Stainless steel fins are mounted to the rectangular tubing. The fins have been specially designed to provide maximum surface contact for good heat dissipation into the finned cross sections, thus resulting in rapid heat transfer t ot the air.
 Part Code No |
Watts
At 230 volts
|

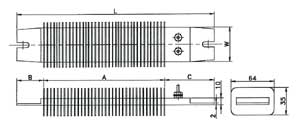

Dimensions
in mm
|
||
|
A
|
L
|
W
|
||
|
SHF-STR
- 050 - 034
|
500
|
340
|
460
|
42
|
|
SHF-STR
- 050 -026
|
500
|
260
|
380
|
42
|
|
SHF-STR
- 065 - 044
|
650
|
440
|
560
|
42
|
|
SHF-STR
- 065 - 035
|
650
|
350
|
470
|
42
|
|
SHF-STR
- 075 - 51
|
750
|
510
|
630
|
42
|
|
SHF-STR
- 075 - 40
|
750
|
400
|
520
|
42
|
|
SHF-STR
- 100 - 070
|
1000
|
700
|
820
|
42
|
|
SHF-STR
- 100 - 055
|
1000
|
550
|
670
|
42
|
|
SHF-STR
- 120 - 081
|
1200
|
810
|
930
|
42
|
|
SHF-STR
- 120 - 063
|
1200
|
630
|
750
|
42
|
|
SHF-STR
- 150 - 102
|
1500
|
1020
|
1140
|
42
|
|
SHF-STR
- 150 - 079
|
1500
|
790
|
910
|
42
|
|
SHF-STR
- 180 - 120
|
1800
|
1200
|
1320
|
42
|
|
SHF-STR
- 180 - 090
|
1800
|
900
|
1020
|
42
|
|
SHF-STR
- 200 - 133
|
2000
|
1330
|
1450
|
42
|
|
SHF-STR
- 200 - 100
|
2000
|
1000
|
1120
|
42
|
