A
- Outer casing - SS sheathed. B - SS standard - termination. C - Ceramic insulator. D - Resistance wire coil. E - Custom mixture. F - Channel with mounting tub |
| Typical Application : | |
|
Oven |
Plater |
|
Hotplates |
Food Warners |
|
Dies |
Welding Preheating |
|
Moulds |
Air Heaters |
|
Drying |
Sealing Bars |
|
Melting |
Tank Heating |
|
Banking |
Incubutors |
Constructions : - The basic design consists of helically wound resistance coil evenly strang through specially designed ceramic insulators. Resistance coil is mechanically connecter to screa terminals or lead wires for positive connection. Stainless steel rectangular tubing is used at house the heater assembly.
 Part Code No |
Watts
At 230 volts
|

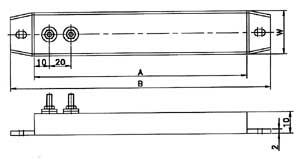

Dimensions
in mm
|
||
|
Width
W |
Length
A |
Length
B |
||
|
SHC2 - STR
- 015 - 140
|
150
|
36
|
140
|
200
|
|
SHC2 - STR
- 020 - 185
|
200
|
36
|
185
|
245
|
|
SHC2 - STR
- 025 - 230
|
250
|
36
|
230
|
290
|
|
SHC2 - STR
- 030 - 275
|
300
|
36
|
275
|
335
|
|
SHC2 - STR
- 040 - 370
|
400
|
36
|
370
|
430
|
|
SHC2 - STR
- 050 - 460
|
500
|
36
|
460
|
520
|
|
SHC2 - STR
- 050 - 370
|
500
|
36
|
370
|
430
|
|
SHC2 - STR
- 060 - 470
|
600
|
36
|
470
|
480
|
|
SHC2 - STR
- 075 - 530
|
750
|
36
|
530
|
590
|
|
SHC2 - STR
- 080 - 560
|
800
|
36
|
560
|
620
|
|
SHC2 - STR
- 090 - 630
|
900
|
36
|
630
|
690
|
|
SHC2 - STR
- 100 - 700
|
1000
|
36
|
700
|
760
|
|
SHC2 - STR
- 120 - 840
|
1200
|
36
|
840
|
900
|
|
Type
Part No.
|
Watts
At 230 volts
|
Dimensions
in mm
|
||
|
Width
W |
Length
A |
Length
B |
||
|
SHC1 - STR
- 015 - 130
|
150
|
42
|
130
|
190
|
|
SHC1 - STR
- 020 - 170
|
200
|
42
|
170
|
230
|
|
SHC1 - STR
- 025 - 210
|
250
|
42
|
210
|
260
|
|
SHC1 - STR
- 030 - 250
|
300
|
42
|
250
|
300
|
|
SHC1 - STR
- 040 - 330
|
400
|
42
|
330
|
380
|
|
SHC1 - STR
- 050 - 410
|
500
|
42
|
410
|
460
|
|
SHC1 - STR
- 050 - 310
|
500
|
42
|
310
|
370
|
|
SHC1 - STR
- 060 - 380
|
600
|
42
|
380
|
440
|
|
SHC1 - STR
- 075 - 470
|
750
|
42
|
470
|
530
|
|
SHC1 - STR
- 080 - 500
|
800
|
42
|
500
|
560
|
|
SHC1 - STR
- 090 - 500
|
900
|
42
|
500
|
560
|
|
SHC1 - STR
- 100 - 560
|
1000
|
42
|
560
|
620
|
|
SHC1 - STR
- 120 -
670
|
1200
|
42
|
670
|
730
|
|
SHC1 - STR
- 150 - 840
|
1500
|
42
|
840
|
900
|
