A

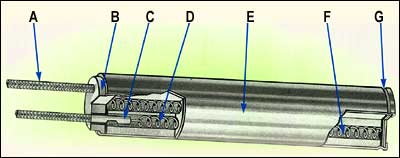

- Flexible Lead Wire B - Ceramic end cap C - Resitance Wire D - Helically wound resistence wire |
E
- Outer Casing (Stainless Steel ) F - MgO Powder G - SS and Disc |
CONSTRUTION
Low Watt Cartridge heaters are manufactured in a complete range of standard physical dimensions, electrical ratings and lead terminations. Outer casing is stainless steel tube. The resistance wire and lead wire are mechanically spliced with heavy wall nickel connectors. Ceramic end cap protects the cartridge internally from outside contamination.
TYPICAL APPLICATIONS
PERFORMANCE RATINGS
Maximum
Temperature: 650°C (1200°F)
Maximum Watt Density: 4.6 - 7.0 W/cm² (30-45 W/In²) depending on
heater size and operating tempreture
DIMENSIONAL SPECIFICATIONS
