HI-WATT DENSITY cartridge heaters are highly compacted by swaging. This provides
a dense, uniform refractory material with excellent heat transfer and electrical
insulation. The Firebrand family of sizes is unique in uniformity of refractory
density. Careful coordination of components provides the same excellent performance
in all sizes at high power outputs.
TYPICAL
APPLICATIONS
Dies,
Platens, Moulds, Hot Plates, injection and extrusion barrels, packaging machinery,
food processing, labeling machines, heat sealing equipments, shoe making machine
etc.

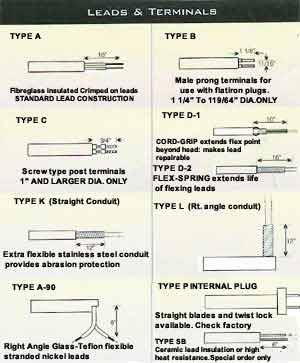

LEADS & TERMINALS
SIZE & RATING DATA
|
Nominal diameter |
(inch) (mm) |
1/4
6.4 |
3/8
9.5 |
1/2
12.7 |
5/8
15.9 |
3/4
19.1 |
|
Nominal diameter |
(±
.002 inch) (± .05 mm) |
.246
6.3 |
.371
9.4 |
.496
12.6 |
.621
15.8 |
.746
19.0 |
|
Maximum Volts
|
240
|
240
|
240
|
480
|
480
|
|
|
Maximum
Amps
|
4.4
|
6.7
|
9.7
|
23
|
23
|
|
|
Maximum
Watts
|
(120
V ) (240 V ) |
525
1050 |
800
1600 |
1160
2320 |
2760
5520 |
2760
5520 |
|
Minimum
Watts
|
(120
V ) 1" Long (120 V ) 2" Long |
100
40 |
65
25 |
40 |
35
15 |
30
10 |
|
METRIC
SIZE
(DIAMETERS IN MM) |
|
