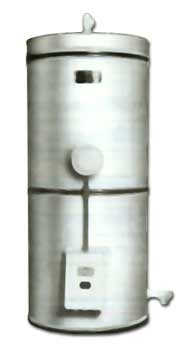

COMMERCIAL ELECTIC WATER HEATERS

"SPHEREHOT" -Commercial Electrical Water Heater are designed and built to perform heavy duty tasks in Hotels, Hospitals, Public Places, Swimming Pools, Jacuzzies, etc., where hot water is required often and in large quantities. They are built with heavy insulation to minimise the heat loss and maximise operating efficiency. Above all, they provide economic solutions for heating water.

The large storage capacity makes it possible to operate at a low operating temperature which results in substantial reduction in electricity consumption and reduces scale deposits and heat losses considerably.

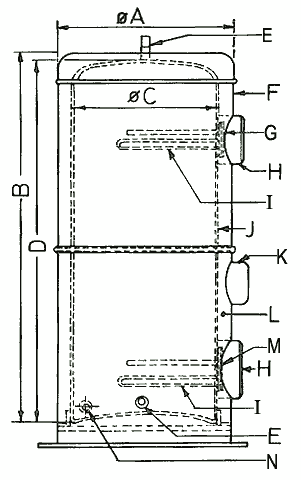

CONSTRUCTION FEATURES
VERTICAL FLOOR MOUNTING

E WATER CONNECTION
Inlet at botton and outlet at top are 1" B.S.P.T.
F OUTER CASING
Made from steel sheet finished in white stoving enamel with the under-coat of phosphate.
 G TEMPERATURE CONTROL
An adjustable stem type Thermostat bearing ISI certification mark IS 3017 is provided on each heater flange.
H TERMINAL BOX
Covering the terminals of Heating Elements and Thermostat Control.
.I ELEMENTS
Specially designed low loaded Ceramic Cartridge Heaters conforming to IS 3724 for easy, replacement without draining water.
J WATER CONTAINER
Made from steel, hot deep galvanised to pervent corrosion. Tested at 7 kg/cm²(100 psi).
K JUNCTION BOX
Terminal provided for taking wires to control panel. Heavy duty contactors are provided for long lasting life.
L INSULATION
A thick blanket of S. G. Wool insulation keeps the loss of heat to a minimum level.
M OVER TEMPERATURE
A rellable high limit control will pervent overtheating. Resetting is manual.
H TERMINAL BOX
Covering the terminals of Heating Elements and Thermostat Control, connected at factory.
I ELEMENTS
Specially designed low loaded Ceramic Cartridge Heaters conforming to IS 3724 for easy, replacement without draining water.
E WATER CONNECTION
Inlet at bottom and outlet at top are 1" B.S.P.T.
N DRAIN COCK
A brass cock to drain water.

Notes : These large capacity floor mounting water heaters are available in VERTICAL as well as
HORIZONTAL types and do not require any foundation.

TYPICAL LAYOUT FOR DUPLEX, TRIPLEX AND QUADRUPLEX INSTALLATIONS OF SPHEREHOT COMMERCIAL ELECTRIC WATER HEATERS

CONTROL PANEL

Bulk Head Mounting Type provided with ON/OFF switch, indicating lamp and appropriate contactor switch for long lasting life suitable for standard 3-Phase, 4-wire, 50 Hz/Sec. A.C.
The Water Heaters can also be supplied for any other voltage, if required.



TABLE - I : VERTICAL FLOOR MOUNTING TYPE
CAPACITY IN LITRES -
140
225
350
450
675
900
1150
MODEL -
03 V
05 V
08 V
10 V
15 V
20 V
25 V
OVERALL DIMENSIONS
(CMS)
DIA. A
53.5
63.5
71.0
78.8
89.0
94.0
104
HT. B
129.5
140
142.5
167.5
198
216
216
INLET AND OUTLET
PIPE SIZE IN B.S.P. (CMS)
-
2.5
2.5
2.5
5
5
5
5
ELECT.POWER (KW)
a
6
6
6
9
12
15
18
b
-
-
9
15
15
18
24
POWER SUPPLY
440 V 3 PH + N 50 Hz A.C.
TIME REQUIRED TO RAISE  TEMP. BY 30° C (MIN)
a
55
90
135
120
135
145
150
b
-
-
90
70
105
120
110
APPROX. WEIGHT
(KG)
EMPTY
130
180
225
275
425
490
500
FULL
265
400
565
725
1100
1400
1700

V = VERTICAL
The above electrical power in KW is our standard supply. However, if higher or lower rating is required then the same can be supplied on request ; The heaters exceeding 350 litres capacity can be supplied with either of the two ratings a&b

TABLE - II : ELECTRICAL CHARACTERISTICS
KW
Number of Elements
Element Wattage
Full current "Amperes"
Number of Thermostats
-
-
-
440 V / 3- Phase
-
6
3
2000
7.8
1
9
3
3000
11.8
1
12
3
4000
15.7
1
15
3
5000
19.6
1
18
3
6000
23.6
1
24
6
4000
31.5
2
27 *
6
4500
35.4
2
30 *
6
5000
39.3
2
36 *
6
6000
47.2
2
45 *
9
5000
59.0
3
54 *
9
6000
70.8
3

"*" Optional on requests.

Custom-built Commercial Water Heaters
Apart from the standard range, custom-built commercial water heaters with variation of electrical load, plumbing connections, with a specific inter-connection - electrical or otherwise - for a specific requirement of hot water quantity at a particular temperature can be designed and supplied on special request.

TABLE - III : LPH RECOVERY CAPACITIES
LITRES PER HOURS (100%EFF.) AT VARIOUS °C TEMP. RISE
KW
RATING
15°
25°
35°
45°
55°
65°
2.0
114.0
68.7
49.0
38.0
31.3
26.3
3.0
172.0
103.0
73.5
57.0
47.0
39.5
4.0
228.0
137.3
98.0
76.0
62.7
52.7
6.0
343.0
206.0
147.0
144.0
94.0
79.0
8.0
456.0
274.7
196.0
152.0
125.3
115.3
9.0
517.0
310.0
221.0
172.0
141.0
119.0
10.0
573.0
344.0
246.0
191.0
156.0
132.0
12.0
687.0
412.0
294.0
229.0
187.0
158.0
16.0
912.0
549.3
392.0
304.0
250.7
230.7
18.0
1030.0
618.0
441.0
343.0
281.0
238.0
20.0
1147.0
688.0
491.0
382.0
313.0
265.0
24.0
1373.0
824.0
589.0
458.0

375.0
317.0
27.0
1547.0
928.0
663.0
516.0
422.0
357.0
30.0
1717.0
1030.0
736.0
572.0
468.0
396.0
36.0
2060.0
1236.0
883.0
687.0
562.0
475.0
40.5
2326.0
1395.0
995.0
774.0
635.0
536.0
45.0
2577.0
1546.0
1104.0
859.0
703.0
595.0
54.0
3090.0
1854.0
1324.0
1030.0
843.0
713.0
