STORAGE WATER HEATERS
ELECTRICAL STORAGE WATER HEATERS : VERTICAL ROUND/SQURE
Model
Dimensions (mm)
Approx. Weight (Kgs.)
Capacity (Ltr.)
Type Model
KW
  A    B      C      D       E      F
Empty
Full
Time*(mins)
6 V      R
2.0/3.0

195  130   212  280    250   214
5.4.
11.4
10
10 V    R
3.0

195  190   312  360    250   214
6.4
16.4
10
15 V    R
3.0

210  190   314  360    315   267
8.4
23.0
15
25 V    R
2.0

210  365   484  535    315   267
10.0
35.0
30
25 VS  R   F
2.0

310  220   365  415    360   318
10.0
35.3
30
35 V    R
2.0

310  300   488  540    360   318
10.3
47.2
40
50 V    R
2.0

310  480   665  710    360   318
12.2
65.0
60
70 V    R
3.0

410  480   667  710    440   381
15.0
90.1
50
100 V  R
3.0

410  575   920  965    440   381
.20.0
124.0
65
140 V  R
3.0

410  800 1252 1300    440   381
24.0
172.6
100
V= Vertical         R= Round          F= Fatso
' * ' Time required to raise temperature by 30°C in mins.





|smart mini | lx-mini | lx-3l | fagor | flomini | storage heaters | sun heater |

| Appliances | Water Heater | Component Heater | Immersion Heater | Circulation Heaters |
| Process Air Heaters | Canteen Equipments | Control Panel |



Site Best Viewed 800 x 600 Pixels IE -5 & above
Web Developers
SPRINT INFOTECH LTD.

CAPACITY 6 - 200 LITRES
WATER HEATERS
FEATURES


OUTER CASING
Corrosion-proof mild steel. Available in a number of colour combinations and finished with powder coating. Few models also available in ABS plastic body and stainless steel.

INNER TANK
For storage water heater it is constructed from pure eletrolytic copper (99% pure). For instant water heater it is deep drawn from a cold rolled, pure electrolytic copper/ stainless steel.
Inner containers are hydraulically tested as per BIS specifications.

HEATING ELEMENT
Mineral filled, tubular, copper sheated and nickel plated conforming to IS 4159-83.

PILOT LAMP
A neon gas-filled indicating lamp shows the accurate functioning of the thermostat/ thermal cut-out/safety cut-out as well as the power supply.

THERMAL INSULATION
To ensure superior energy efficiency all Storage Water Heaters have resin bonded glasswool slab insulation filled between two casings.

TOTAL SAFETY
THERMOSTAT : A stem type snap action thermostat is provided in most of the models. At a preset temperature, the thermostat cuts off the electric supply automatically.

THERMAL CUT-OUT : Additional safety measure. Re starts only on pressing the reset knob.

PRESSURE RELEASE VALVE : It releases any excess pressure above 50 p.s.i. and is fitted on the inlet pipe.

FUSIBLE PLUG : In a rare event of thermostat / cut-out or pressure release valve failure, it springs into action.

HORIZONTAL TYPE

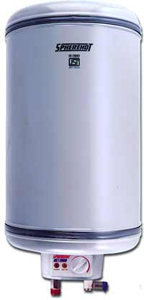

VERTICAL TYPE
